Our double high industrial safety steel guardrail uses 42" high posts and accepts 2 rails per section. All posts have inserts on all 4 sideds to accept rails on all 4 sides of the post to provid maximum versatility. Heavy duty posts are 4.75" x 4.75" x 3/16" thick steel with 10" x 10" x 1/2" thick heavy duty base plates. Each baseplate has (4) 7/8" diameter holes to accept 3/4" x 4 - 1/4" long concrete wedge anchors. Rails are 12" high x 1/8" thick double ribbed steel. Powder coated safety yellow for maximum visibility. Impact rating: 12,000 lbs. at 4 mph crash test. 2' - 10' long rails available in 1' increments.
CALL US TODAY: (336) 362-1639 or
Email: philstrouth@gmail.com
DOUBLE HIGH GUARD RAIL
INDUSTRIAL SAFETY STEEL GUARDRAIL SYSTEMS: Our Premium safety guardrail is installed in warehouse distribution centers, production areas, around machinery & equipment, in-plant offices, and employee walk aisles to help protect against forklift and other injury or damage to your most important resources..... Employees and Personnel!!!
Double high industrial guard has a 42” high post with a 10” square base plate that is anchored to the concrete with (4) ¾” x 4.25" long concrete wedge anchors. Each post has stainless steel threaded inserts on all 4 sides of the post to allow rails to be bolted in any configuration.
The rails are mounted to the posts by bolt and nut attachment in 2’ – 10’ increments with lift out style rails also available.

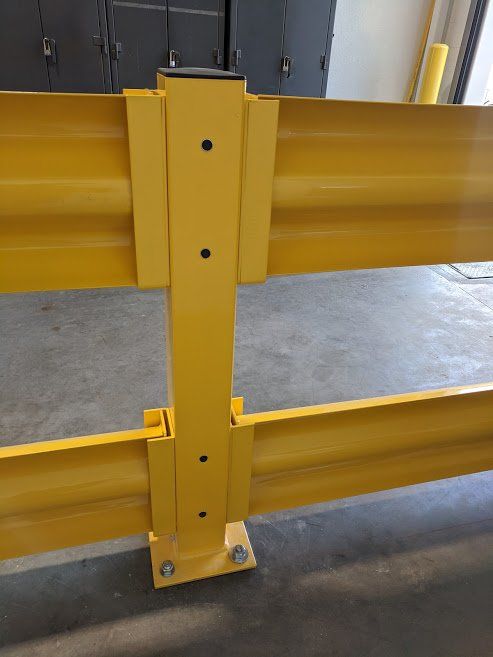

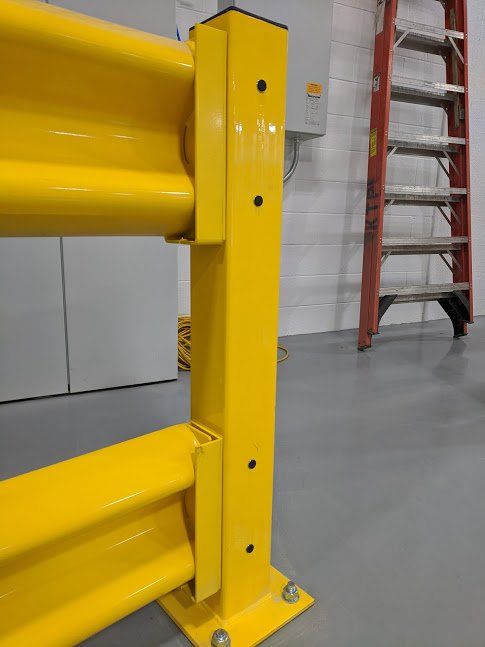

Double high industrial guard rail columns are 42" high. All columns are 4.75" square high strength steel wall with black plastic top caps. A popular option is using lift out cuff brackets to the guard rail system. The cuff brackets bolt directly to the posts. The rails simple drop into the brackets. When you need to access the area, you can simply lift out the rails.
Columns are universal style to accept straight or corner connections. All columns have a 10" square x 1/2" thick steel base plate with (4) 7/8" diameter anchor holes. 3/4" x 4.25" long concrete wedge type anchors included with columns.
Rails are 12" high x 1/8" thick tensile steel formed into a two rib corrugated design. Rails mount to column with 1/2" x 1" long x Grade 5 bolts included with rails.
Columns and rails come powder coated OSHA safety yellow and ship in 48 - 72 hours from Chicago, IL; Watsontown, PA; Lincolnton, NC; Dallas, TX; San Bernardino, CA; Auburn WA; Louisville, KY; Rome, GA; Chicago, IL; Milwaukee, WI; Houston, TX; Charlotte, NC; Fort Worth, TX; Harrison, OH, and Angola, IN.
Safety Gates can be directly mounted to guard rail double and triple high posts in 3' wide and 4' wide spring loaded swing gates. Guard rail lengths . The lengths are center to center of columns. Rated to withstand impact of 10,000 - 12,000 lbs. load at 4 mph.
Employee protection and pedestrian protection in a warehouse is important. Heavy duty guard rail is a great way to allow walkways and divide forklift traffic, so everyone stays safe. We install double high guard rail around this shipping and receiving office in the warehouse to protect against forklifts. We also install heavy duty hand rail to keep people safe when entering doors.
